Friday, 19 November 2010

cabin sides

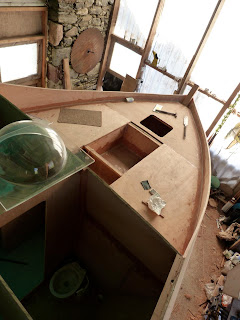

At last the cabin sides are now finished and the boat is really showing her shape now. It is amazing how different she looks with the sweeping cockpit sides that are mirrored at the bow.

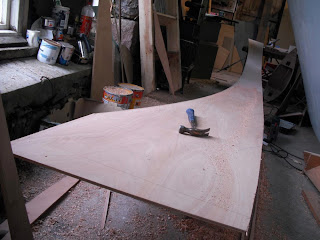

To get this shape I started by making a hardboard template to get the shape right without committing to expensive ply. I then scarfed together two 8’ lengths of ply to get a 16’ section that would bend and twist around the cockpit in one hit (it makes the transition from leaning into the cabin to leaning out to match the hull angle at the stern post/stem while curving around the cockpit/bow) These are then screwed, glued, nailed and tortured into position followed by a second layer. At the same time I used 100mm glass tape and epoxy to smooth in the joint between deck and side.
